Why You Us Pressure Leaf Filter
Why you use pressure leaf filter?
Pressure leaf filter advantages:

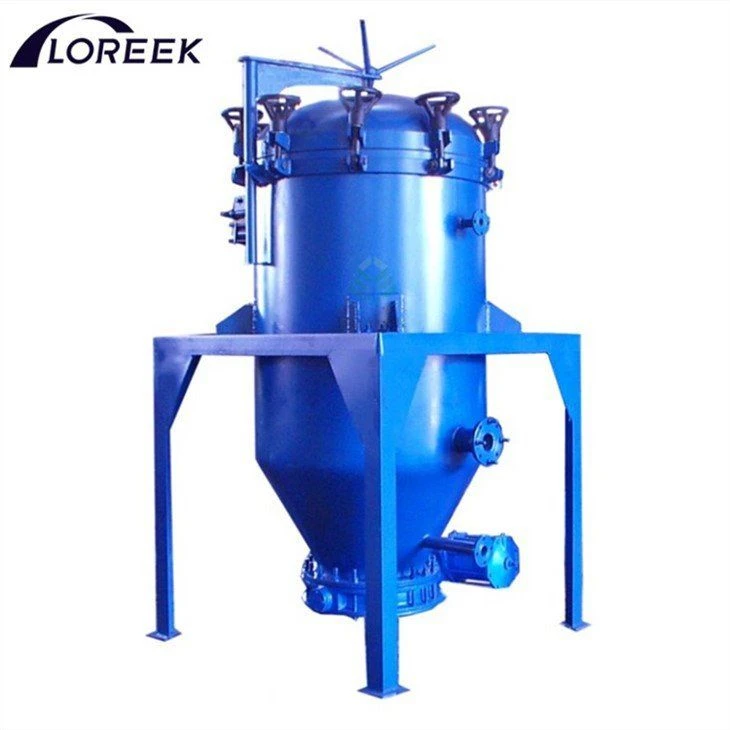

Loreek brand NYB pressure leaf filter for oil and fat industry (VPLF) is one kind of low pressure filtration equipment. Its main filter elements is filter leaves constructed by multi-layer stainless steel filter mesh. Its filtration effect is realized by both filter mesh and filter cake. According to test, the filtration precision can reach 5-10 microns.
Our NYB Pressure Leaf Filter is applicable to petrochemical, food, pharmaceutical and other industries. It greatly reduces labor intensity and realizes continuous operation by vibrating slag falling. Pneumatic valve slag discharge, greatly reducing the labor intensity of workers. It can replace the plate and frame filter and is the preferred equipment in the filtration industry.
Pressure leaf filter Parameters:
Model | Filter area | Diameter | Cake Volume | Capacity(t/h) | Height | ||
Oil | Resin | Drink | |||||
VPLF-2 | 2Sq.meter | 400mm | 30L | 0.4-0.6 | 1-1.5 | 1-3 | 1600mm |
VPLF-4 | 4Sq.meter | 550mm | 60L | 0.5-1.2 | 2-3 | 2-5 | 1950mm |
VPLF -7 | 7Sq.meter | 650mm | 105L | 1-1.8 | 3-6 | 4-7 | 2150mm |
VPLF -10 | 10Sq.meter | 800mm | 150L | 1.6-3 | 5-8 | 6-9 | 2300mm |
VPLF -15 | 15Sq.meter | 900mm | 300L | 3-5 | 7-12 | 10-13 | 2400mm |
VPLF -20 | 20Sq.meter | 1100mm | 400L | 4-6 | 9-15 | 12-17 | 2500mm |
VPLF -30 | 30Sq.meter | 1200mm | 600L | 6-8 | 14-23 | 19-25 | 2600mm |
VPLF -40 | 40Sq.meter | 1300mm | 800L | 8-11 | 21-34 | 30-38 | 3000mm |
VPLF -50 | 50Sq.meter | 1400mm | 1040L | 10-15 | 27-45 | 42-51 | 3300mm |
VPLF -60 | 60Sq.meter | 1500mm | 1200L | 11-17 | 36-60 | 56-68 | 3500mm |
VPLF -80 | 80Sq.meter | 1600mm | 1600L | 13-21 | 40-68 | 64-78 | 3800mm |
Pressure leaf filter Features:
Compact structure, small footprint.
SS304/316 filter mesh, good filter effect, low loss.
Automatic vibration cake discharging, low labor intensity.
Fully closed design. Clean working environment.
Two sets in parallel to realize continuous production.
Filter Elements Construction:
The main filter elements of vertical leaf filter is inner filter leaves. Each filter leaf is constructed by 5 layer filter mesh(2 layers filter mesh, 2 layer support mesh and middle support frame). Surely we support 7 layers' construction. The mesh size and filtration precision is determined by the materials that need to be treated.
Pressure leaf filter clients:
Global service since 2012, Loreek Machinery has supplied products and service to over 40 countries and areas excluding China mainland. Southeast Asia, West Asia, South Asia, Northeast Asia, Middle East, Europe, North Americ, South America, Africa, Oceanica and so on.
Why you use pressure leaf filter?
The main core filtration components are made of special stainless steel support with layers of composite woven screen, corrosion resistant, easy to clean, long filtering life, can be used for 3-5 years, low maintenance cost.
