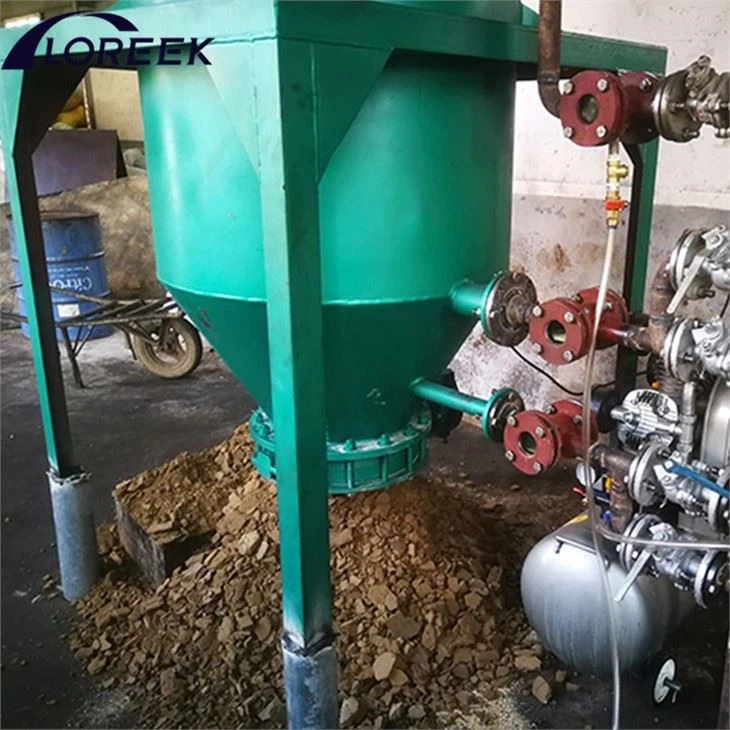

Pressure Leaf Filter for Oil Industry
Overview
Pressure leaf filter for oil industry is usually used for decolorization filtration, clarification filtration, separation filtration etc.. It can be used for many kinds of oil, such as edible oil, biodiesel oil, waste motor oil, used fried oil recycling etc..With the help of filter aid, it can realize decolorization , clarification and separation destinations. It can well replace plate and frame filter press in oil industry.
Our Pressure Leaf Filter for Oil Industry is used to remove impurities such as dust, metal particles, carbon deposits and soot particles in engine oil. Its sealing ring is made of special rubber to ensure no oil leakage. It has a backflow suppression valve and an overflow valve to prevent the oil filter from drying. It has the properties of strong filtering capacity, small flow resistance and long service life.
Products Parameters:
1. Working pressure:0.1-0.49Mpa
2. Design temperature:≤150°c
3. Vibrator air pressure:0.45-0.6 Mpa
4. Max. working pressure:0.6Mpa
5. Vibration frequency:3000-4500 times/minute
6. Liquid content in slag: ≤0.5%
Our leaf filter mainly has below filter area: 4 square meters,8 square meters, 10 square meters, 12 square meters,15 square meters, 20 square meters, 30 square meters,40 square meters,50 square meters, 60 square meters,80 square meters.
Products Parameters:
Model | Filter area | Diameter | Cake Volume | Capacity(t/h) | Height | ||
Oil | Resin | Drink | |||||
VPLF-2 | 2Sq.meter | 400mm | 30L | 0.4-0.6 | 1-1.5 | 1-3 | 1600mm |
VPLF-4 | 4Sq.meter | 550mm | 60L | 0.5-1.2 | 2-3 | 2-5 | 1950mm |
VPLF -7 | 7Sq.meter | 650mm | 105L | 1-1.8 | 3-6 | 4-7 | 2150mm |
VPLF -10 | 10Sq.meter | 800mm | 150L | 1.6-3 | 5-8 | 6-9 | 2300mm |
VPLF -15 | 15Sq.meter | 900mm | 300L | 3-5 | 7-12 | 10-13 | 2400mm |
VPLF -20 | 20Sq.meter | 1100mm | 400L | 4-6 | 9-15 | 12-17 | 2500mm |
VPLF -30 | 30Sq.meter | 1200mm | 600L | 6-8 | 14-23 | 19-25 | 2600mm |
VPLF -40 | 40Sq.meter | 1300mm | 800L | 8-11 | 21-34 | 30-38 | 3000mm |
VPLF -50 | 50Sq.meter | 1400mm | 1040L | 10-15 | 27-45 | 42-51 | 3300mm |
VPLF -60 | 60Sq.meter | 1500mm | 1200L | 11-17 | 36-60 | 56-68 | 3500mm |
VPLF -80 | 80Sq.meter | 1600mm | 1600L | 13-21 | 40-68 | 64-78 | 3800mm |
Application
1. Petrochemical Industry: polyether, diesel oil, lubricating oil, white oil, transformer oil
2. Mineral oil and base oil: dibutyl ester, dioctyl ester
3. Oil: crude oil, bleached oil, gasified oil, winterized oil, etc
4. Food: gelatin, salad oil, starch, sugar juice, monosodium glutamate, milk, etc
5. Pharmaceutical: hydrogen peroxide, vitamin C, glycerin, etc
6. Coatings: varnish, resin paint, real paint, 685 varnish, etc
About LOREEK
LOREEK is a leading company in design and manufacturing around the world filtration industry. The company specializes in automatic and intelligent filtration, especially holds an important status in the field of self-cleaning filtration.
Packaging &Transportation Arrangements:
We support wooden case and pallet, plastic film and plastic pallet, cartons and related package arrangements. Surely LCL/FCL shipment by air/Sea/Rail etc..
