Recessed Chamber Filter Presses
Products Introduction

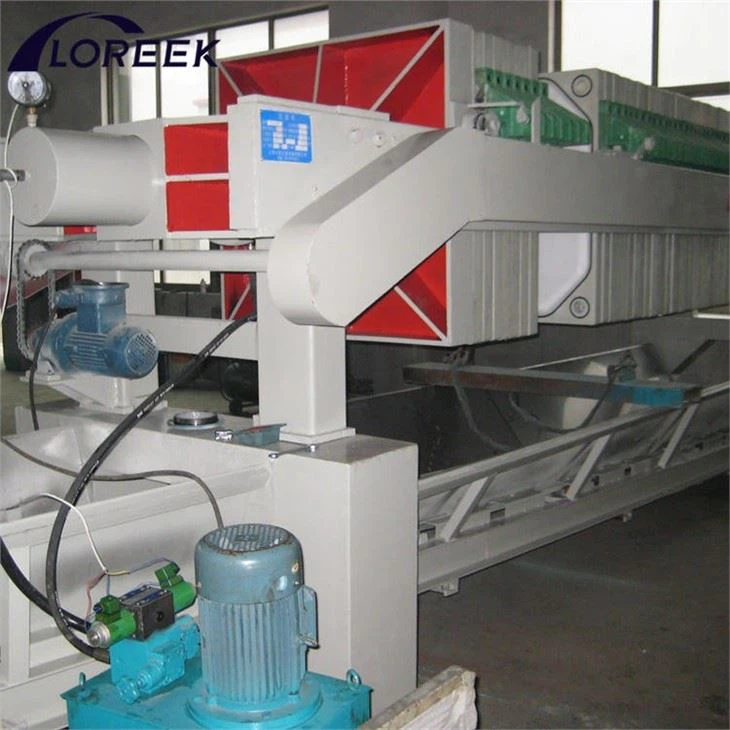

LOREEK Recessed Chamber Filter Presses is a new type of excellent airtight filter press. The embedded (airtight) filter plate is a new type of filter plate, which is molded with high strength polypropylene at one time. The four sides of the filter plate are carved into fishtail groove by numerical control engraving machine. There are two inner and outer fishtail grooves. There is a groove outside and a sealing strip inside.
Recessed Chamber Filter Presses is widely used in pesticide, chemical industry, strong acid, strong alkali and other corrosive, volatile industries! Its filtration cycle is short and its production capacity is superior. It has intelligent man-machine interface control to reduce labor consumption. It is resistant to fatigue, aging resistance, good sealing and strong corrosion resistance.
Technical Parameters:
Model | Filter area (m2) | Plate Size (mm) | Plate Thickness (mm) | No of plates | Chamber volume (L) | Filtering Pressure (Mpa) |
XMZ/1000-30U | 100 | 1000×1000 | 35 | 58 | 1608 | ≥0.8 |
| 120 | 70 | 1941 | ||||
XMZ/1250-40U | 200 | 1250×1250 | 35 | 73 | 3847 | ≥0.8 |
| 240 | 90 | 4783 | ||||
XMZ/1500 -40U | 400 | 1500×1500 | 40 | 99 | 7618 | ≥0.8 |
| 500 | 113 | 9446 | ||||
For other options, please directly contact us for discussion. | ||||||
About LOREEK
Packaging &Transportation Arrangements:
