Manure Solid Liquid Separators
video
Manure Solid Liquid Separators

Manure Solid Liquid Separators

LOREEK manure solid liquid separator is mainly used for solid-liquid separation and dehydration of biogas slurry, such as pig manure, cow manure, chicken manure, duck manure and livestock manure. The separated coarse fiber can be used as fertilizer or enter the biogas digester for fermentation.
Send Inquiry
Product Details ofManure Solid Liquid Separators

Products Introduction

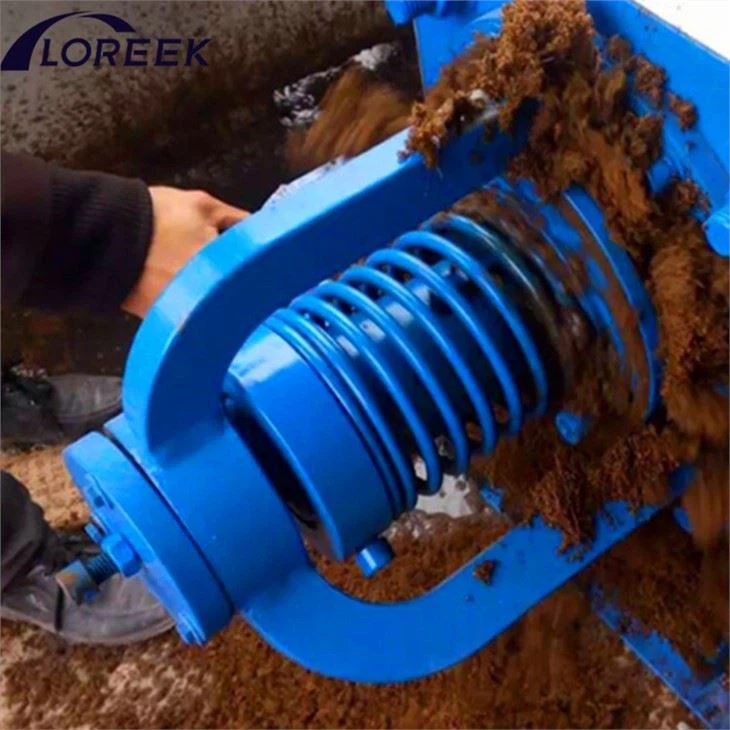

LOREEK Manure Solid Liquid Separators are mainly used for solid-liquid separation and dehydration of biogas slurry, such as pig manure, cow manure, chicken manure, duck manure and livestock manure. The separated coarse fiber can be used as fertilizer or enter the biogas digester for fermentation.

As an important environmental protection equipment for aquaculture, our Manure Solid Liquid Separators is widely used in the solid-liquid separation of animal husbandry, industrial and agricultural raw materials. The solid-liquid separator can treat livestock manure, fruit residue, sawdust, biogas and other materials, so as to achieve the effect of solid-liquid separation and secondary utilization. It has the characteristics of no pollution, safety and reliability, small floor area, high safety, simple installation, convenient maintenance, fine workmanship, beautiful appearance and adjustable dry and wet. At present, it is widely used.

stock1

stock2

Work flow

flow chart

Products parameters

Model

LS-180

LS-230

LS-280

Voltage

380V/Customized

Motor Power

4KW

4KW

5.5KW

Machine size(mm)

2000*600*1300

2200*610*1350

2400*800*1300

Machine weight

340kg

510kg

680kg

Capacity

8-10 M³/H

10-15 M³/H

20-25 M³/H

Sieve diameter

180mm

230mm

280mm

Inlet diameter

76mm

76mm

76mm

Over flow port diameter

76mm

76mm

76mm

Drain pipe diameter

110mm

110mm

110mm

Material

Carbon steel +304 stainless steel

Ductile iron +304 stainless steel

Ductile iron +304 stainless steel

Screw and sieve material

304 stainless steel

304 stainless steel

304 stainless steel

Packaging &Transportation Arrangements:

For single equipment, we will arrange LCL shipment and wooden cases packaging. For batch orders, we will arrange film packaging & FCL shipment.

package

Main Applications

application
