Dewaxing Horizontal Pressure Leaf Filter
Overview

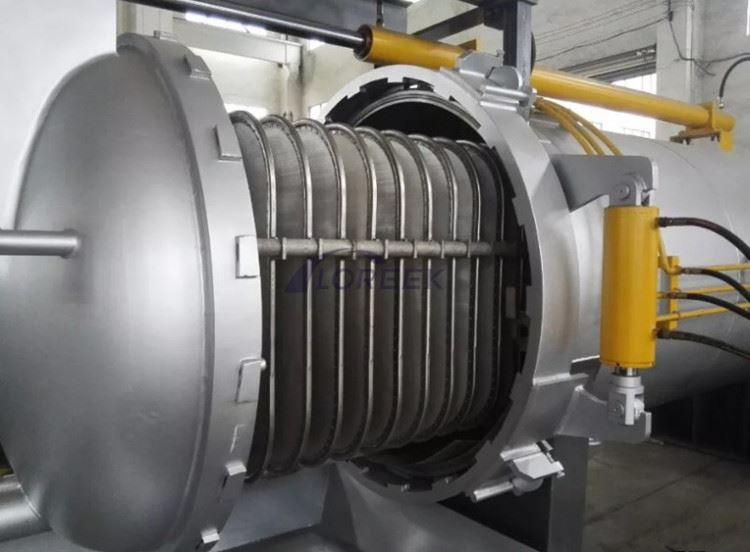

Loreek brand dewaxing horizontal pressure leaf filter (HPLF Series) can be used for dry and wet cake discharge in many industries, such as filtration of sugar, cocoa or edible oils, for the removal of activated carbon, molten sulphur filtration or catalyst recovery. It has shell retraction or bundle retraction functions. The main structure includes horizontal pressure vessel, filter leaves, pneumatic vibrator assembly, bottom structure housing, hydraulic power pack for bonnet ring opening / closing and shell or bundle retraction.
The inner filter leaves are mounted on a central outlet manifold with special 'O' ring sealing. The filtration areas of our Dewaxing Horizontal Pressure Leaf Filter ranges from 2m2 to 200m2. Filters can also be equipped with fix or oscillating sluicing devices for wet cake dislodging. It is easy to use.
Products Parameters:
Model | Filter Area(m2) | Cylinder Diameter (mm) | Working Pressure(Mpa) | Working Temperature(ºC) | Capacity(T/h.m2) | ||
| Grease | Resin | Beverage | |||||
HPLF -5 | 5 | Ø900Ø1200Ø1400Ø1500 | 0.4 | 150 | 0.2 | 0.7 | 0.8 |
HPLF -10 | 10 | 0.4 | 150 | ||||
HPLF -15 | 15 | 0.4 | 150 | ||||
HPLF -20 | 20 | 0.4 | 150 | ||||
HPLF -30 | 30 | 0.4 | 150 | ||||
HPLF -40 | 40 | 0.4 | 150 | ||||
HPLF -50 | 50 | 0.4 | 150 | ||||
HPLF -60 | 60 | 0.4 | 150 | ||||
HPLF -70 | 70 | 0.4 | 150 | ||||
HPLF -80 | 80 | 0.4 | 150 | ||||
HPLF -90 | 90 | 0.4 | 150 | ||||
HPLF-100 | 100 | 0.4 | 150 | ||||
HPLF-120 | 120 | 0.4 | 150 | ||||
HPLF-140 | 140 | 0.4 | 150 | ||||
HPLF-160 | 160 | 0.4 | 150 | ||||
HPLF-180 | 180 | 0.4 | 150 | ||||
Paraffin Wax Horizontal Leaf Filter Features:
1. Fully closed filtration, no leakage, no environmental pollution.
2. The automatic driving structure is easy to work in the observation and cleaning.
3. Larger filter area, large slag amount of capacity.
4. Hydraulic control, operational automation.
5. 2m2 to 200m2 model are all available.
Pressure Leaf filter Application:
Some clients who use our pressure leaf filter:
Global service since 2012, Loreek Machinery has supplied products and service to over 40 countries and areas excluding China mainland. Southeast Asia, West Asia, South Asia, Northeast Asia, Middle East, Europe, North Americ, South America, Africa, Oceanica and so on.
